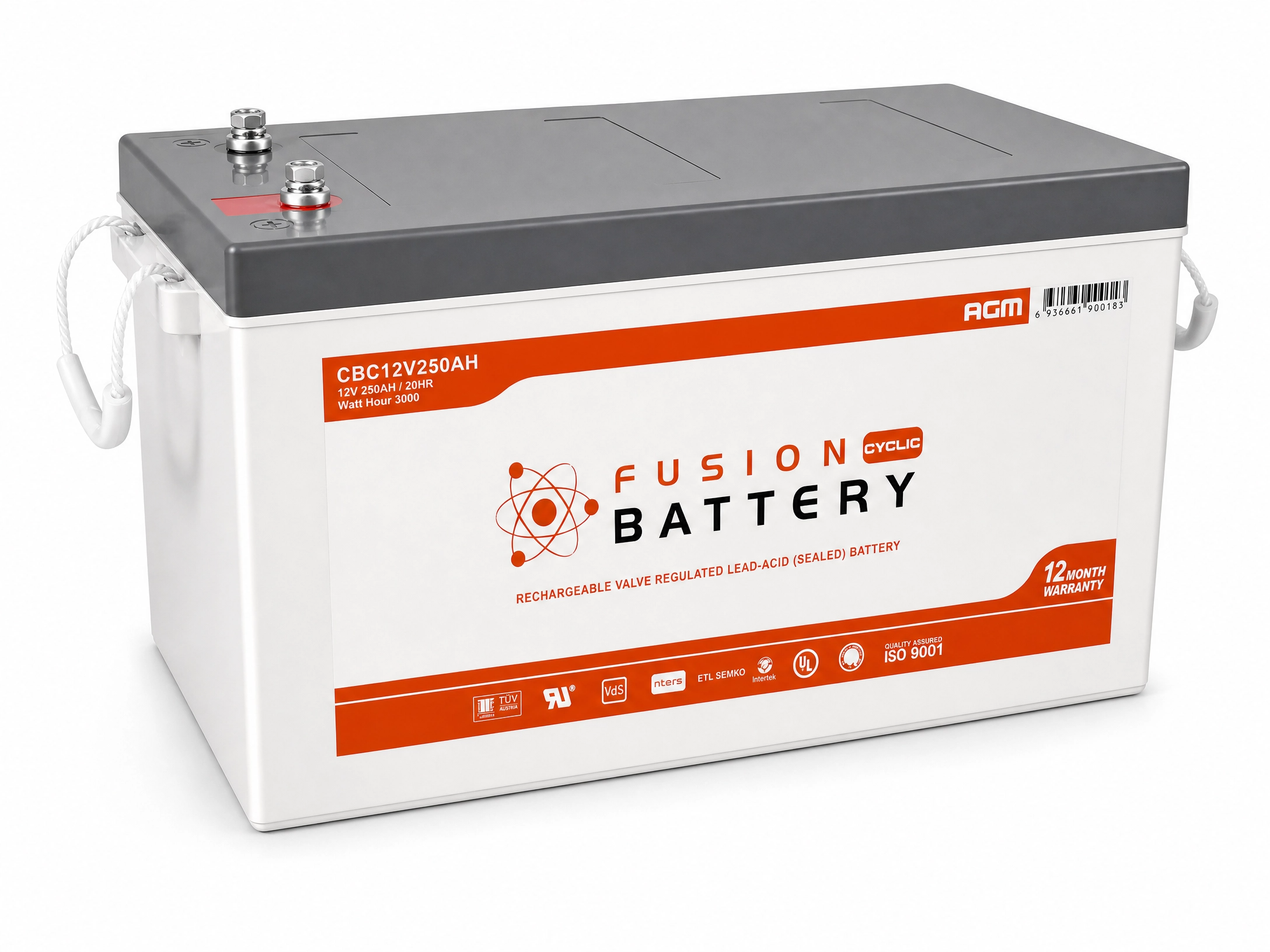

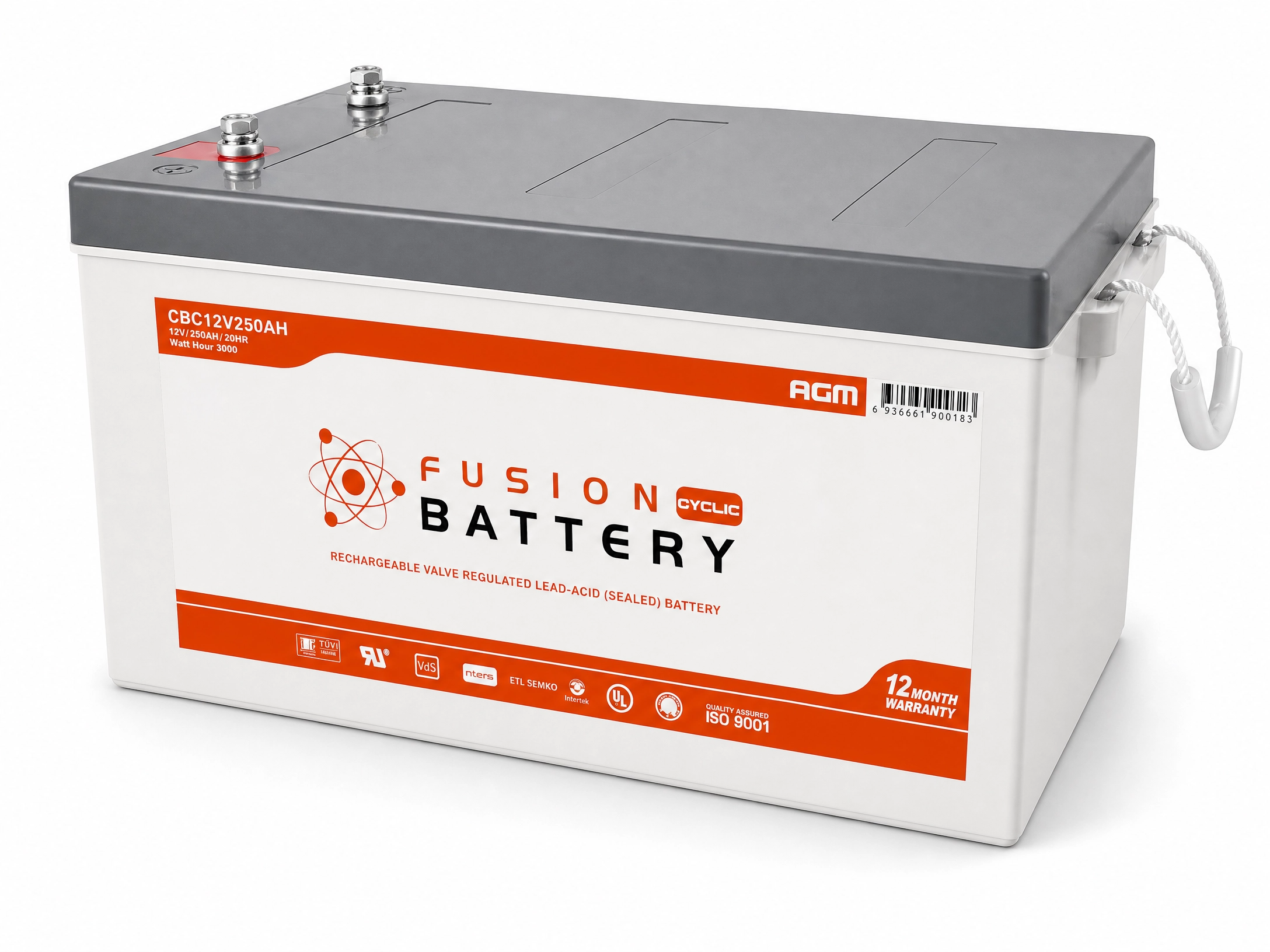

The Fusion AGM CBC Series (CBC12V260AH) is a premium, valve-regulated sealed lead-acid (VRLA) battery engineered specifically for high-performance deep-cycle cyclic applications. Completely maintenance-free and built with a wide temperature operating range, this robust 12V battery features a high 260Ah nominal capacity, making it the perfect reliable energy storage solution for marine, solar, RV, and standby backup power systems.

Key Product Specifications

Electrical Performance

• Nominal Voltage: 12V

• Nominal Capacity (10-hr rate): 250Ah

• Nominal Capacity (20-hr rate): 264Ah

• Internal Resistance: (Fully charged at 25°C)

Battery Life & Reliability

• Cyclic Life: Up to 800 times at 50% Depth of Discharge

• Float Life: Approximately 5 years (at 25°C / 13.8V float charge)

• Self-Discharge Rate: Excellent shelf life, retaining 90% capacity after 3 months, 80% after 6 months, and 62% after 12 months of storage (at 25°C).

Charging Voltage Limits (at 25°C)

• Cycle Use Charging: Initial current less than 75A | Voltage 14.6V – 15.0V

• Float/Standby Charging: Voltage 13.5V – 13.8V

Physical & Mechanical Characteristics

• Battery Dimensions (L x W X H): 520mm x 268mm x 218mm (Total Height: 226mm)

• Net Weight: 70.0 kg

• Terminal Type: M8 bolt
